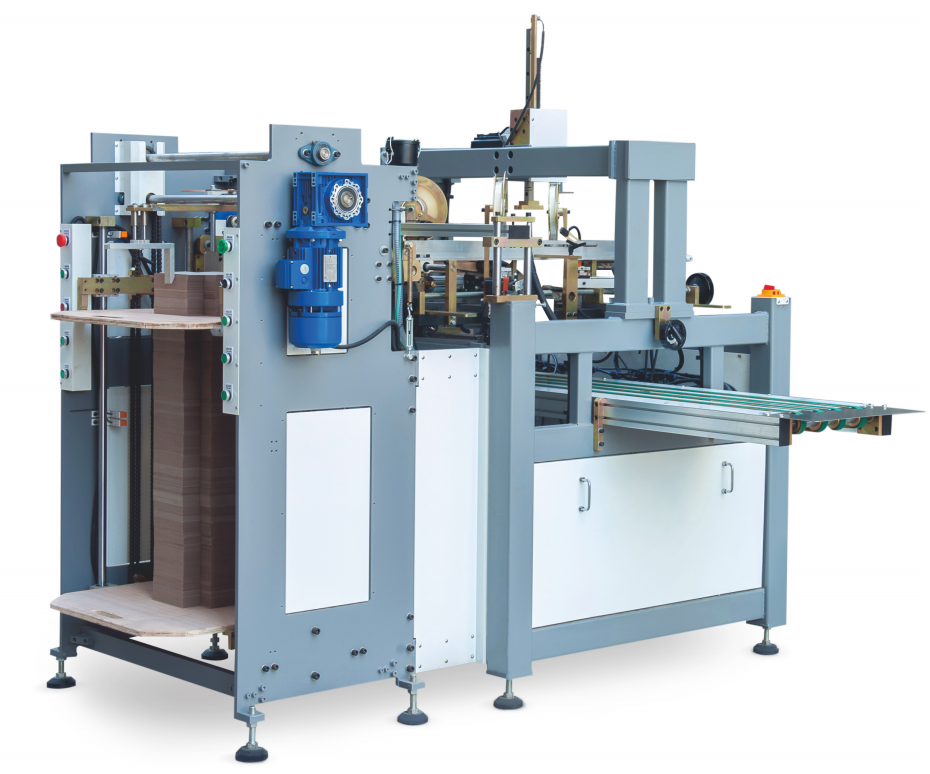

LY-750B Automatic Corner Pasting Machine (Intelligent Set-up)
This automatic corner pasting machine is engineered to seamlessly paste corners for rigid and sleeve boxes. Intelligent setup interface system, which is simple, easy to learn, understand and operate. Driven by servo motors, the machine ensures accurate tape application via a user-friendly touch screen interface. A high-alloy tape slot prevents jamming, while the bottom feeder design enables non-stop operation, greatly boosting production efficiency for box manufacturers.
Key Features
- Setting up time in 10mins.
- The full servo drive control system and PLC programming ensure the accuracy and performance of the product.
- Non-stop feeding, reduce labor intensity,decrease machine stopping time .
- The paper feeding adopts a belt-driven pull-out system, effectively increasing production output.
- The production efficiency of this machine is 3 to 5 times that of traditional manual corner pasting.
- Multiple functions able to do square boxes and sleeves boxes.
Product Examples
Product Types
Technical Specification
|
Model
|
LY-750B |
|
Maximum paper size
|
740*640mm |
|
Paper thickness
|
1-4mm |
|
Box size(max)
|
L500*W400*H150mm |
|
Box size(min)
|
L80*W60*H20mm |
|
Sleeve box size(max)
|
L400*W120*H150mm |
|
Sleeve box size(min)
|
L80*W30*H20mm |
|
Paper stack height
|
1000mm |
|
Production speed
|
25-45 pcs/min |
|
Power supply
|
380V/50Hz |
|
Total power
|
3.88kw |
|
Air pressure
|
0.5-0.8Mpa |
|
Tape width size
|
19mm |
|
Machine dimension
|
2550*2100*2200mm |
|
Machine weight
|
1280kg |
